267-225 | WAGO

Socket, 5 pole, Push-wire connection, 1.0 mm², white/gray, 267-225

Order No.: 43P9981
EAN: 4055143327190
MPN:
267-225
Series: 267
WAGO
267-225 WAGO Device Connectors
Image may differ
Unit Price (€ / pc.)
9.3058 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
9.31 € *
*incl. VAT plus shipping costs
**Subject to prior sale
250 pcs.
9.3058 €

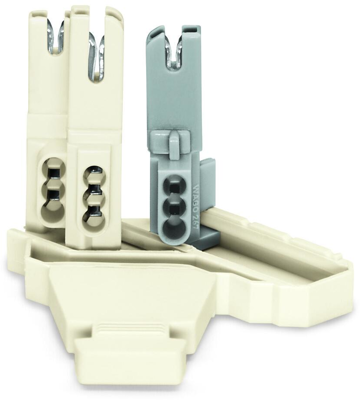

Socket, 267-225, WAGO

Female connector, without ground contact, with strain relief plate, 5-pole, 1.00 mm², white/gray.

Features

  • Overvoltage category: III
  • Pollution degree: 2
  • Flammability class per UL94: V0
  • Compact design
  • Future system expansions possible
Technical specifications
Connection Push-wire connection
Version socket
Colour white/gray
Cable cross-section 1.0 mm²
Rated voltage IEC 500 V
Rated current IEC 6 A
Line filter present No
Switch illuminated No
Power switch available No
Pin number 5 pole
Fuse holder present No
Pin temperature 105 °C
Type of locking No
Logistics
Country of origin PL
Customs tariff number 85369010
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
