267-437 | WAGO
Conductor holder, 7 pole, IDC connection, 2.5 mm², white, 267-437
Unit Price (€ / pc.)
1.7612 € *
Available: 0 pcs.
Leadtime: On Request **

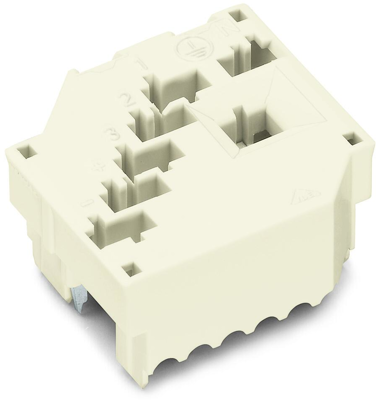

Conductor support, 267-437, WAGO
Conductor support, cover, with direct ground contact, 7-pole, 2.50 mm², white.
Features
- Compact design
- Future system expansions possible
- Overvoltage category: III
- Pollution degree: 2
- Flammability class per UL94: V0
Technical specifications
| Connection | IDC connection | |
| Version | conductor holder | |
| Design | straight | |
| Colour | white | |
| Cable cross-section | 2.5 mm² | |
| Rated voltage IEC | 500 V | |
| Rated current IEC | 6 A | |
| Line filter present | No | |
| Switch illuminated | No | |
| Power switch available | No | |
| Pin number | 7 pole | |
| Fuse holder present | No | |
| Pin temperature | 105 °C | |
| Type of locking | No |
Download
Logistics
| Country of origin | PL |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
