770-102/041-000 | WAGO

Socket, 2 pole, spring-clamp connection, 0.5-4.0 mm², black, 770-102/041-000

Order No.: 46F8218
EAN: 4050821117919
MPN:
770-102/041-000
Series: 770
WAGO

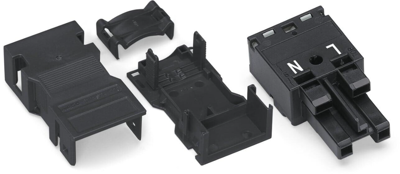

770-102/041-000 WAGO Device Connectors Image 1
770-102/041-000 WAGO Device Connectors Image 2
770-102/041-000 WAGO Device Connectors Image 3
Image may differ
Print
Key Specification:
Version socket
Pin number 2 pole
Colour black
Connection spring-clamp connection
Show 4 variants
Download Datasheet Technical specifications
Unit Price (€ / pc.)
4.9028 € *
Available: 0 pcs.
Leadtime: On Request **
Add to Cart
Total Price:
4.90 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
4.9028 €
Description
Technical specifications
Download
Logistics
Compliance
Variations

Socket, 770-102/041-000, WAGO

Socket, with strain relief housing, 2-pole, code A, 4.00 mm², black.

Features

  • Protected against mismating
  • Two wire connections per pole for loops or bridges
  • Overvoltage category: III
  • Pollution degree: 3
  • Flammability class per UL94: V0
Technical specifications
Connection spring-clamp connection
Version socket
Design straight
Colour black
Cable cross-section 0.5-4.0 mm²
Rated voltage IEC 250 V
Rated voltage UL/CSA 600 V
Rated current IEC 25 A
Rated current UL/CSA 23 A
Power switch available No
Pin number 2 pole
Pin temperature 85 °C
Type of locking Yes
Show similar products 0
Logistics
Country of origin DE
Customs tariff number 85366990
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
