Socket, 3 pole, cable assembly, spring-clamp connection, 0.5-4.0 mm², black, 770-103
Unit Price (€ / pc.)
7.0329 € *
Available: 6 pcs.
Leadtime: 1 Week **
Total Price:
7.03 € *
Price list
Quantity
Price per unit*
1 pcs.
7.0329 €
10 pcs.
6.4736 €
50 pcs.
5.8905 €
100 pcs.
5.3074 €
*incl. VAT plus shipping costs
**Subject to prior sale

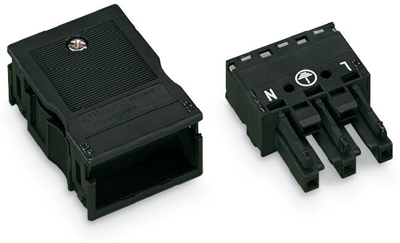

Socket, 770-103, WAGO
Socket, with strain relief housing, 3-pole, code A, 4.00 mm², black.
Features
- Protected against mismating
- Two wire connections per pole for loops or bridges
- Overvoltage category: III
- Pollution degree: 3
- Flammability class per UL94: V0
Technical specifications
| Connection | spring-clamp connection | |
| Version | socket | |
| Design | straight | |
| Colour | black | |
| Cable diameter | 8 to 11.5 mm | |
| Cable cross-section | 0.5-4.0 mm² | |
| Assembly | cable assembly | |
| Rated voltage IEC | 250 V | |
| Rated voltage UL/CSA | 600 V | |
| Rated current IEC | 25 A | |
| Rated current UL/CSA | 23 A | |
| Switch illuminated | No | |
| Power switch available | No | |
| Pin number | 3 pole | |
| Pin temperature | 85 °C |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
