770-1335 | WAGO

Plug, 5 pole, spring-clamp connection, 0.5-4.0 mm², green, 770-1335

Order No.: 44P6785
EAN: 4045454071653
MPN:
770-1335
Series: 770
WAGO

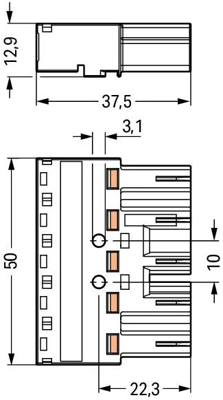

770-1335 WAGO Device Connectors Image 1

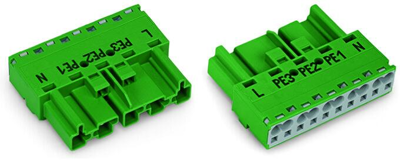

770-1335 WAGO Device Connectors Image 2
Image may differ
Unit Price (€ / pc.)
4.9147 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
4.91 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
4.9147 €

Plug, 770-1335, WAGO

Plug, 5-pole, code Q.

Features

  • Protected against mismating
  • Overvoltage category: III
  • Pollution degree: 3
  • Flammability class per UL94: V0
Technical specifications
Connection spring-clamp connection
Version plug
Design straight
Colour green
Cable cross-section 0.5-4.0 mm²
Rated voltage IEC 400 V
Rated voltage UL/CSA 600 V
Rated current IEC 32 A
Rated current UL/CSA 23 A
Pin number 5 pole
Pin temperature 85 °C
Type of locking Yes
Logistics
Country of origin DE
Customs tariff number 85366990
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
