770-135 | WAGO

Plug, 5 pole, spring-clamp connection, 0.5-4.0 mm², white, 770-135

Order No.: 44P6788
EAN: 4044918254502
MPN:
770-135
Series: 770
WAGO

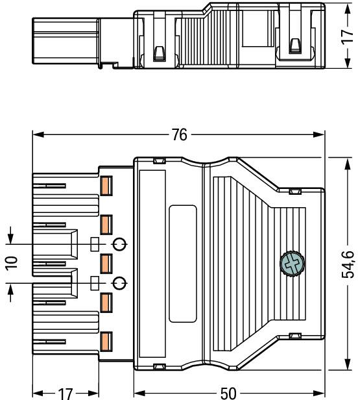

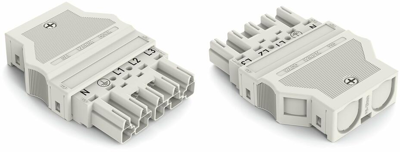

770-135 WAGO Device Connectors Image 1
770-135 WAGO Device Connectors Image 2
770-135 WAGO Device Connectors Image 3
Image may differ
Unit Price (€ / pc.)
7.5327 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
7.53 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
7.5327 €

Plug, 770-135, WAGO

Plug, with strain relief housing, 5-pole, 4.00 mm², white.

Features

  • Protected against mismating
  • Two wire connections per pole for loops or bridges
  • Overvoltage category: III
  • Pollution degree: 3
  • Flammability class per UL94: V0
Technical specifications
Connection spring-clamp connection
Version plug
Design straight
Colour white
Cable cross-section 0.5-4.0 mm²
Rated voltage IEC 400 V
Rated voltage UL/CSA 600 V
Rated current IEC 25 A
Rated current UL/CSA 23 A
Pin number 5 pole
Pin temperature 85 °C
Type of locking Yes
Logistics
Country of origin DE
Customs tariff number 85366990
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
