770-1373/147-000 | WAGO

Plug, 3 pole, spring-clamp connection, 4.0 mm², brown, 770-1373/147-000

Order No.: 44P6793
EAN: 4045454148324
MPN:
770-1373/147-000
Series: 770
WAGO

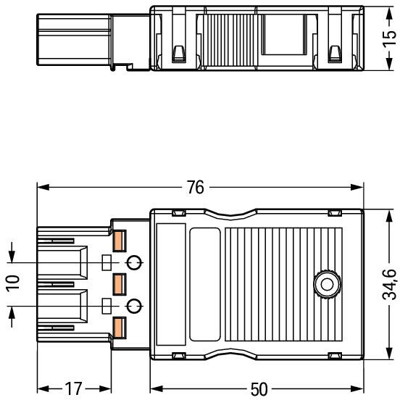

770-1373/147-000 WAGO Device Connectors Image 1

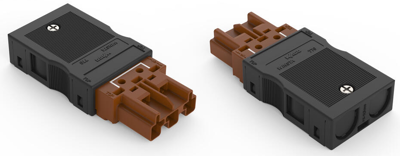

770-1373/147-000 WAGO Device Connectors Image 2
Image may differ
Unit Price (€ / pc.)
7.9373 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
7.94 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
7.9373 €

Plug, 770-1373/147-000, WAGO

Shorting plug, with assembled strain relief housing, 3-pole, code S, bridge 1-L, 4.00 mm², brown.

Features

  • Overvoltage category: III
  • Pollution degree: 3
  • Flammability class per UL94: V0
Technical specifications
Connection spring-clamp connection
Version plug
Design straight
Colour brown
Cable cross-section 4.0 mm²
Rated voltage IEC 250 V
Rated voltage UL/CSA 600 V
Rated current IEC 25 A
Rated current UL/CSA 23 A
Pin number 3 pole
Pin temperature 85 °C
Type of locking Yes
Logistics
Country of origin DE
Customs tariff number 85366990
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
