770-1608 | WAGO

H-distributor, 2 pole, gray, 770-1608

Order No.: 44P6801
EAN: 4055143561808
MPN:
770-1608
Series: 770
WAGO

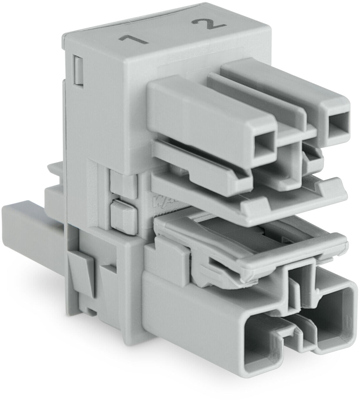

770-1608 WAGO Device Connectors Image 1

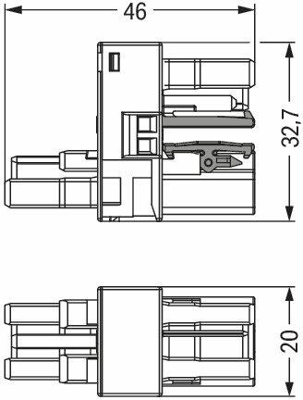

770-1608 WAGO Device Connectors Image 2
Image may differ
Unit Price (€ / pc.)
5.4264 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
5.43 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
5.4264 €

H-distributor, 770-1608, WAGO

H-distribution connector, 2-pole, code B, 1 input, 2 outputs, outputs on both sides, 2 locking levers, gray.

Features

  • Flexible installation to save space
  • Quick replacement of defective units during ongoing operation
  • Flammability class per UL94: V0

Applications

  • For power applications
Technical specifications
Version H-distributor
Colour gray
Rated voltage IEC 250 V
Rated voltage UL/CSA 600 V
Rated current IEC 25 A
Rated current UL/CSA 23 A
Pin number 2 pole
Pin temperature 85 °C
Type of locking Yes
Logistics
Country of origin DE
Customs tariff number 85366990
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
