770-1613 | WAGO

T-distributor, 3 pole, pink, 770-1613

Order No.: 44P6805
EAN: 4055143433846
MPN:
770-1613
Series: 770
WAGO

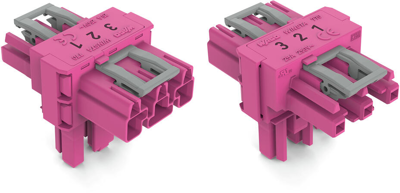

770-1613 WAGO Device Connectors Image 1

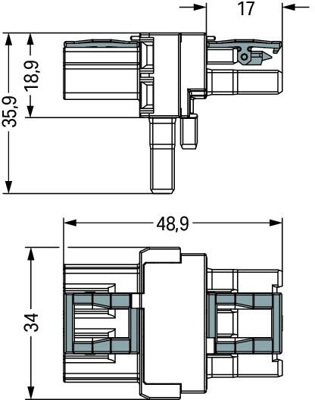

770-1613 WAGO Device Connectors Image 2
Image may differ
Unit Price (€ / pc.)
5.4740 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
5.47 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
5.4740 €

T-distributor, 770-1613, WAGO

T-distribution connector, 3-pole, code B, 1 input, 2 outputs, 2 locking levers, pink.

Features

  • Pluggable installation connectors with protection against mismating
  • Quick replacement of defective units during ongoing operation
  • Flammability class per UL94: V0

Applications

  • For power applications
  • For lighting applications
Technical specifications
Version T-distributor
Design T-shape
Colour pink
Rated voltage IEC 250 V
Rated voltage UL/CSA 600 V
Rated current IEC 25 A
Rated current UL/CSA 23 A
Pin number 3 pole
Pin temperature 85 °C
Type of locking Yes
Logistics
Country of origin DE
Customs tariff number 85366990
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
