770-1659 | WAGO
H-distributor, 2 pole, green, 770-1659
Unit Price (€ / pc.)
5.7953 € *
Available: 0 pcs.
Leadtime: On Request **

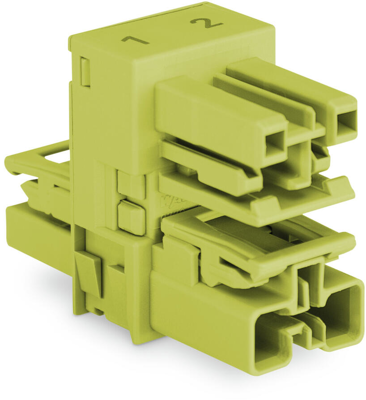

H-distributor, 770-1659, WAGO
H-distribution connector, 2-pole, code B, 1 input, 2 outputs, outputs on both sides, 3 locking levers, for flying leads, light green.
Features
- Protection against mismating
- Quick replacement of defective units during ongoing operation
- Overvoltage category: III
- Pollution degree: 3
- Flammability class per UL94: V0
Applications
- For automation controllers
- For power applications
- For lighting applications
Technical specifications
| Version | H-distributor | |
| Colour | green | |
| Rated voltage IEC | 250 V | |
| Rated voltage UL/CSA | 600 V | |
| Rated current IEC | 25 A | |
| Rated current UL/CSA | 23 A | |
| Pin number | 2 pole | |
| Pin temperature | 85 °C | |
| Type of locking | Yes |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
