770-1712 | WAGO
T-distributor, 3 pole, green, 770-1712
Unit Price (€ / pc.)
5.8667 € *
Available: 0 pcs.
Leadtime: On Request **

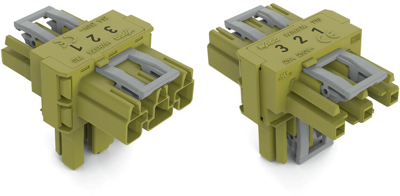

T-distributor, 770-1712, WAGO
T-distribution connector, 3-pole, code B, 1 input, 2 outputs, 3 locking levers, for flying leads, light green.
Features
- Protected against mismating
- Overvoltage category: III
- Pollution degree: 3
- Flammability class per UL94: V0
Technical specifications
| Version | T-distributor | |
| Design | T-shape | |
| Colour | green | |
| Rated voltage IEC | 250 V | |
| Rated voltage UL/CSA | 600 V | |
| Rated current IEC | 25 A | |
| Rated current UL/CSA | 23 A | |
| Pin number | 3 pole | |
| Pin temperature | 85 °C | |
| Type of locking | Yes |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
