770-223 | WAGO

Socket, 3 pole, spring-clamp connection, 0.5-4.0 mm², white, 770-223

Order No.: 44P6878
EAN: 4044918252362
MPN:
770-223
Series: WINSTA MIDI

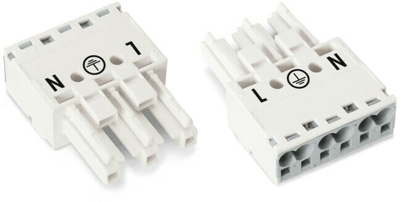

770-223 WAGO Device Connectors Image 1

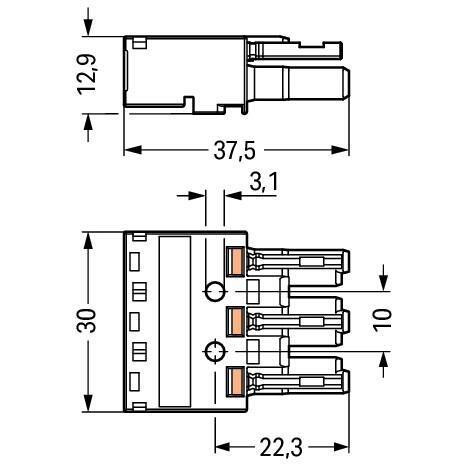

770-223 WAGO Device Connectors Image 2
Image may differ
Unit Price (€ / pc.)
2.8441 € *
Available: 0 pcs.
Leadtime: 4 Weeks **
Total Price:
2.84 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
2.8441 €

Socket, 770-223, WAGO

Socket, 3-pole, code A, 4.00 mm², white.

Features

  • Protected against mismating
  • Two wire connections per pole for loops or bridges
  • Overvoltage category: III
  • Pollution degree: 3
  • Flammability class per UL94: V0
Technical specifications
Anschluss Federklemmanschluss
Ausführung Buchse
Bauform gerade
Farbe weiß
Leiterquerschnitt 0,5-4,0 mm²
Nennspannung IEC 250 V
Nennspannung UL/CSA 600 V
Nennstrom IEC 25 A
Nennstrom UL/CSA 23 A
Polzahl 3-polig
Stifttemperatur 85 °C
Verriegelung Ja
Logistics
Ursprungsland DE
Zolltarifnummer 85366990
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
