770-225 | WAGO

Socket, 5 pole, spring-clamp connection, 0.5-4.0 mm², white, 770-225

Order No.: 44P6880
EAN: 4044918252409
MPN:
770-225
Series: WINSTA MIDI

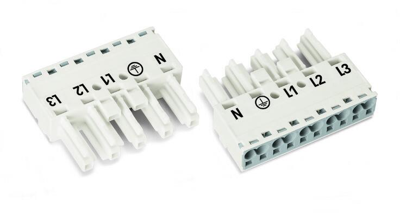

770-225 WAGO Device Connectors Image 1
770-225 WAGO Device Connectors Image 2
Image may differ
Unit Price (€ / pc.)
4.6767 € *
Available: 0 pcs.
Leadtime: 3 Weeks **
Total Price:
4.68 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
4.6767 €

Socket, 770-225, WAGO

Socket, 5-pole, code A, 4.00 mm², white.

Features

  • Protected against mismating
  • Two wire connections per pole for loops or bridges
  • Overvoltage category: III
  • Pollution degree: 3
  • Flammability class per UL94: V0
Technical specifications
Anschluss Federklemmanschluss
Ausführung Buchse
Bauform gerade
Farbe weiß
Leiterquerschnitt 0,5-4,0 mm²
Nennspannung IEC 400 V
Nennspannung UL/CSA 600 V
Nennstrom IEC 25 A
Nennstrom UL/CSA 23 A
Polzahl 5-polig
Stifttemperatur 85 °C
Verriegelung Ja
Logistics
Ursprungsland DE
Zolltarifnummer 85366990
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
