770-2324 | WAGO
Socket, 4 pole, snap-in, spring-clamp connection, 0.5-4.0 mm², green, 770-2324
Unit Price (€ / pc.)
4.641 € *
Available: 0 pcs.
Leadtime: 4 Weeks **

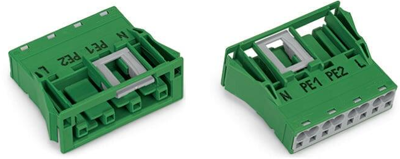

Socket, 770-2324, WAGO
Snap-in socket, 4-pole, code Q, 4.00 mm², green.
Features
- Protection against mismating
- Two wire connections per pole for loops or bridges
- Overvoltage category: III
- Pollution degree: 3
- Flammability class per UL94: V0
Technical specifications
| Connection | Federklemmanschluss | |
| Version | Buchse | |
| Design | gerade | |
| Colour | grün | |
| Cable cross-section | 0,5-4,0 mm² | |
| Assembly | Snap-in | |
| Rated voltage IEC | 400 V | |
| Rated voltage UL/CSA | 600 V | |
| Rated current IEC | 25 A | |
| Rated current UL/CSA | 23 A | |
| Line filter present | No | |
| Switch illuminated | No | |
| Power switch available | No | |
| Pin number | 4-polig | |
| Fuse holder present | No | |
| Pin temperature | 85 °C |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
