770-233/035-050 | WAGO

Plug, 3 pole, snap-in, spring-clamp connection, 0.5-4.0 mm², white, 770-233/035-050

Order No.: 44P8910
EAN: 4055143369329
MPN:
770-233/035-050
Series: WINSTA MINI

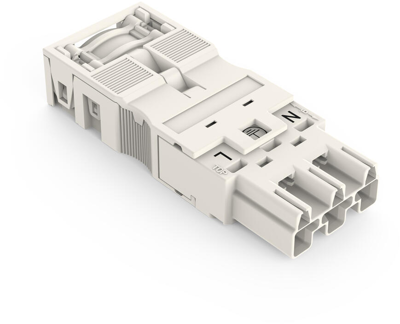

770-233/035-050 WAGO Device Connectors Image 1

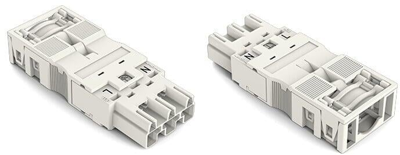

770-233/035-050 WAGO Device Connectors Image 2

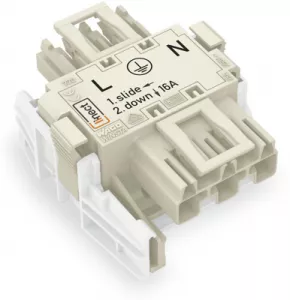

770-233/035-050 WAGO Device Connectors Image 3

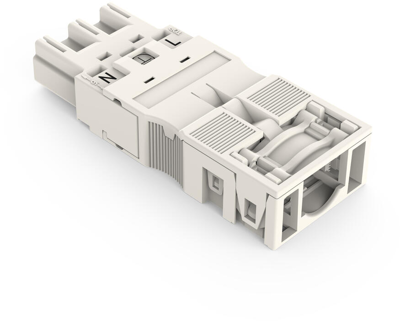

770-233/035-050 WAGO Device Connectors Image 4

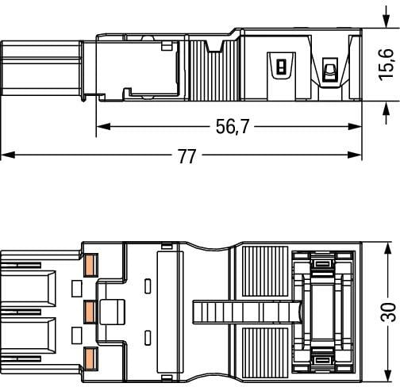

770-233/035-050 WAGO Device Connectors Image 5
Image may differ
Unit Price (€ / pc.)
4.8909 € *
Available: 0 pcs.
Leadtime: 4 Weeks **
Total Price:
4.89 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
4.8909 €

Plug, 770-233/035-050, WAGO

With the WINSTA MIDI male connector/plug rated current 25 A. The mechanical coding and color coding of the pluggable installation connector ensure error-free installation of the individual components – including protection against mismating. The pluggable installation connector is protected in accordance with protection type IP20. Thus the product is especially suitable for high power loads. The WINSTA MIDI product line guarantees maximum flexibility for the electrical installation. With its Push-in CAGE CLAMP spring pressure connection technology, it achieves error-free, time-saving installation and offers flexibility and customization for meeting an enormous variety of installation requirements. A range up to 48 mm can be used for the strip length.

Features

  • For automation controllers
  • Suitable for any application
  • Ready to install and use immediately
  • Fast, secure installation
Technical specifications
Anschluss Federklemmanschluss
Ausführung Stecker
Bauform gerade
Farbe weiß
Leiterquerschnitt 0,5-4,0 mm²
Montage Snap-in
Nennspannung IEC 250 V
Nennspannung UL/CSA 600 V
Nennstrom IEC 25 A
Nennstrom UL/CSA 23 A
Netzfilter vorhanden No
Netzschalter beleuchtet No
Netzschalter vorhanden No
Polzahl 3-polig
Sicherungshalter vorhanden No
Verriegelung Ja
Logistics
Ursprungsland DE
Zolltarifnummer 85366990
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei No
