770-2335/007-000 | WAGO

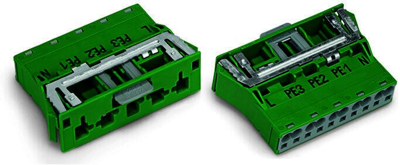

Plug, 5 pole, snap-in, spring-clamp connection, 0.5-4.0 mm², green, 770-2335/007-000
Unit Price (€ / pc.)
6.1404 € *
Available: 0 pcs.
Leadtime: 3 Weeks **
Plug, 770-2335/007-000, WAGO
Snap-in plug, with direct ground contact, 5-pole, code Q, 4.00 mm², green
Features
- Protected against mismating
- Two wire connections per pole for loops or bridges
- Overvoltage category: III
- Pollution degree: 3
- Flammability class per UL94: V0
Technical specifications
| Anschluss | Federklemmanschluss | |
| Ausführung | Stecker | |
| Bauform | gerade | |
| Farbe | grün | |
| Leiterquerschnitt | 0,5-4,0 mm² | |
| Montage | Snap-in | |
| Nennspannung IEC | 400 V | |
| Nennspannung UL/CSA | 600 V | |
| Nennstrom IEC | 32 A | |
| Nennstrom UL/CSA | 23 A | |
| Polzahl | 5-polig | |
| Stifttemperatur | 85 °C | |
| Verriegelung | Ja |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85366990 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
