770-2353 | WAGO

Plug, 3 pole, snap-in, spring-clamp connection, 0.5-4.0 mm², orange, 770-2353

Order No.: 44P6897
EAN: 4044918254069
MPN:
770-2353
Series: WINSTA MIDI

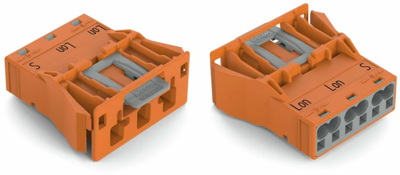

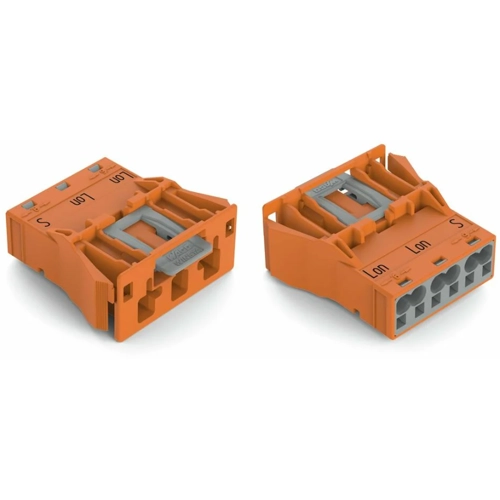

770-2353 WAGO Device Connectors Image 1
770-2353 WAGO Device Connectors Image 2
770-2353 WAGO Device Connectors Image 3
Image may differ
Unit Price (€ / pc.)
2.8441 € *
Available: 0 pcs.
Leadtime: 4 Weeks **
Total Price:
2.84 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
2.8441 €

Plug, 770-2353, WAGO

Snap-in plug, 3-pole, code R, 4.00 mm², orange.

Features

  • Protected against mismating
  • Two wire connections per pole for loops or bridges
  • Overvoltage category: III
  • Pollution degree: 3
  • Flammability class per UL94: V0
Technical specifications
Anschluss Federklemmanschluss
Ausführung Stecker
Bauform gerade
Farbe orange
Leiterquerschnitt 0,5-4,0 mm²
Montage Snap-in
Nennspannung IEC 250 V
Nennspannung UL/CSA 600 V
Nennstrom IEC 25 A
Nennstrom UL/CSA 23 A
Polzahl 3-polig
Stifttemperatur 85 °C
Verriegelung Ja
Logistics
Ursprungsland DE
Zolltarifnummer 85366990
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
