770-252 | WAGO

Plug, 2 pole, spring-clamp connection, 0.5-4.0 mm², gray, 770-252

Order No.: 44P6913
EAN: 4050821541875
MPN:
770-252
Series: WINSTA MIDI

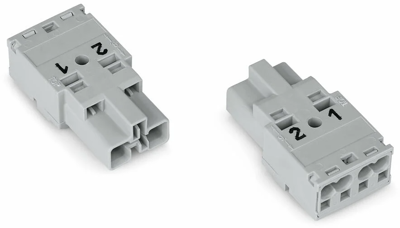

770-252 WAGO Device Connectors Image 1

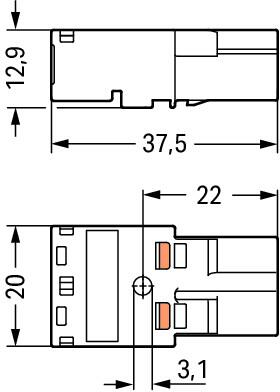

770-252 WAGO Device Connectors Image 2
Image may differ
Unit Price (€ / pc.)
2.261 € *
Available: 0 pcs.
Leadtime: 4 Weeks **
Total Price:
2.26 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
2.261 €

Plug, 770-252, WAGO

Plug, 2-pole, 4.00 mm², gray.

Features

  • Protected against mismating
  • Two wire connections per pole for loops or bridges
  • Overvoltage category: III
  • Pollution degree: 3
  • Flammability class per UL94: V0
Technical specifications
Anschluss Federklemmanschluss
Ausführung Stecker
Bauform gerade
Farbe grau
Leiterquerschnitt 0,5-4,0 mm²
Nennspannung IEC 250 V
Nennspannung UL/CSA 600 V
Nennstrom IEC 25 A
Nennstrom UL/CSA 23 A
Polzahl 2-polig
Stifttemperatur 85 °C
Verriegelung Ja
Logistics
Ursprungsland DE
Zolltarifnummer 85366990
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
