770-325 | WAGO

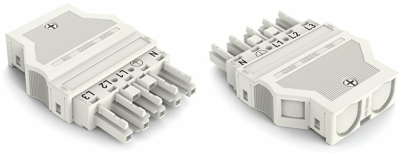

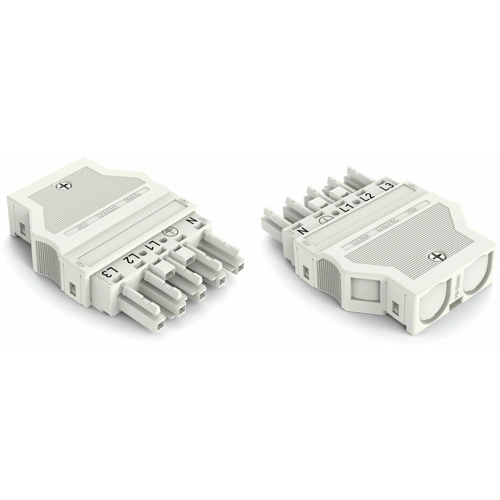

Socket, 5 pole, spring-clamp connection, 0.5-4.0 mm², white, 770-325
Unit Price (€ / pc.)
7.4256 € *
Available: 0 pcs.
Leadtime: 4 Weeks **
Socket, 770-325, WAGO
Socket, with strain relief housing, 5-pole, code A, 4.00 mm², white.
Features
- Protected against mismating
- Overvoltage category: III
- Pollution degree: 3
- Flammability class per UL94: V0
Technical specifications
| Anschluss | Federklemmanschluss | |
| Ausführung | Buchse | |
| Bauform | gerade | |
| Farbe | weiß | |
| Leiterquerschnitt | 0,5-4,0 mm² | |
| Nennspannung IEC | 400 V | |
| Nennspannung UL/CSA | 600 V | |
| Nennstrom IEC | 25 A | |
| Nennstrom UL/CSA | 23 A | |
| Polzahl | 5-polig | |
| Stifttemperatur | 85 °C | |
| Verriegelung | Ja |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85366990 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
