770-715 | WAGO
Plug, 5 pole, snap-in, spring-clamp connection, 0.5-4.0 mm², black, 770-715
Unit Price (€ / pc.)
5.9738 € *
Available: 28 pcs.
Leadtime: 3 Weeks **
Total Price:
5.97 € *
Price list
Quantity
Price per unit*
1 pcs.
5.9738 €
10 pcs.
5.4978 €
50 pcs.
4.9980 €
100 pcs.
4.5101 €
*incl. VAT plus shipping costs
**Subject to prior sale

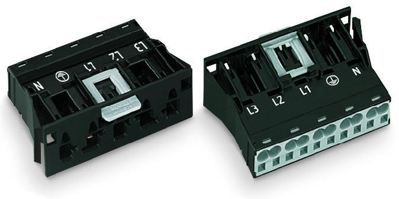

Plug, 770-715, WAGO
Snap-in plug, 5-pole, code A, 4.00 mm², black.
Features
- Protected against mismating
- Two wire connections per pole for loops or bridges
- Overvoltage category: III
- Pollution degree: 3
- Flammability class per UL94: V0
Technical specifications
| Connection | Federklemmanschluss | |
| Version | Stecker | |
| Design | gerade | |
| Colour | schwarz | |
| Cable cross-section | 0,5-4,0 mm² | |
| Assembly | Snap-in | |
| Rated voltage IEC | 400 V | |
| Rated voltage UL/CSA | 600 V | |
| Rated current IEC | 25 A | |
| Rated current UL/CSA | 23 A | |
| Switch illuminated | No | |
| Power switch available | No | |
| Pin number | 5-polig | |
| Pin temperature | 85 °C |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
