770-845/064-000 | WAGO
Socket, 5 pole, spring-clamp connection, gray, 770-845/064-000
Unit Price (€ / pc.)
4.1412 € *
Available: 0 pcs.
Leadtime: 4 Weeks **
Socket, 770-845/064-000, WAGO

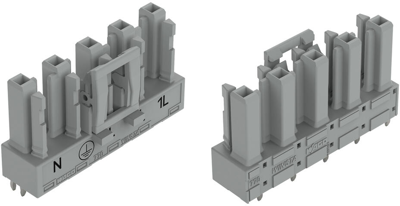

Socket for PCBs, straight, 5-pole, code B, gray.
Features
- Protected against mismating
- Two wire connections per pole for loops or bridges
- Overvoltage category: III
- Pollution degree: 3
- Flammability class per UL94: V0
Technical specifications
| Anschluss | Federklemmanschluss | |
| Ausführung | Buchse | |
| Bauform | abgewinkelt | |
| Farbe | grau | |
| Nennspannung IEC | 400 V | |
| Nennspannung UL/CSA | 600 V | |
| Nennstrom IEC | 25 A | |
| Nennstrom UL/CSA | 23 A | |
| Polzahl | 5-polig | |
| Stifttemperatur | 85 °C | |
| Verriegelung | Ja |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85366990 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
