890-105 | WAGO

Socket, 5 pole, cable assembly, push-in, 0.25-1.5 mm², black, 890-105

Order No.: 46F8314
EAN: 4045454232870
MPN:
890-105
Series: 890
WAGO

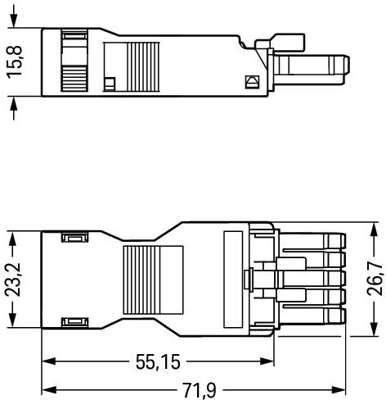

890-105 WAGO Device Connectors Image 1

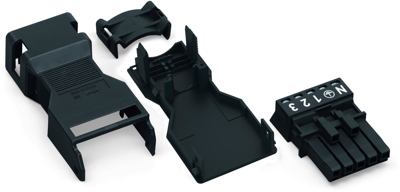

890-105 WAGO Device Connectors Image 2
890-105 WAGO Device Connectors Image 3
Image may differ
Print
Key Specification:
Version socket
Pin number 5 pole
Colour black
Connection push-in
Show 4 variants
Download Datasheet Technical specifications
Unit Price (€ / pc.)
6.9972 € *
Available: 0 pcs.
Leadtime: On Request **
Add to Cart
Total Price:
7.00 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
6.9972 €
Description
Technical specifications
Download
Logistics
Compliance
Variations

Socket, 890-105, WAGO

Socket, with strain relief housing, 5-pole, code A, 1.50 mm², black.

Features

  • Protected against mismating
  • Overvoltage category: III
  • Pollution degree: 3
  • Flammability class per UL94: V0
Technical specifications
Connection push-in
Version socket
Design straight
Colour black
Cable diameter 6.5 to 10.5 mm
Cable cross-section 0.25-1.5 mm²
Assembly cable assembly
Rated voltage IEC 400 V
Rated voltage UL/CSA 600 V
Rated current IEC 13 A
Rated current UL/CSA 12 A
Pin number 5 pole
Pin temperature 85 °C
Type of locking Yes
Show similar products 0
Logistics
Country of origin DE
Customs tariff number 85366990
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
