890-123 | WAGO

Socket, 3 pole, cable assembly, push-in, 0.25-1.5 mm², white, 890-123

Order No.: 45P2851
EAN: 4045454232962
MPN:
890-123
Series: WINSTA MINI

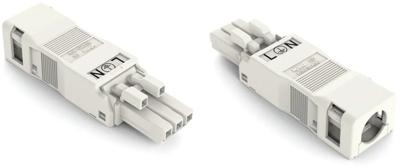

890-123 WAGO Device Connectors Image 1
890-123 WAGO Device Connectors Image 2
890-123 WAGO Device Connectors Image 3
Image may differ
Unit Price (€ / pc.)
4.2602 € *
Available: 45 pcs.
Leadtime: 4 Weeks **
Total Price:
4.26 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
4.2602 €

Socket, 890-123, WAGO

Socket, with strain relief housing, 3-pole, code A, 1.50 mm², white.

Features

  • Protected against mismating
  • Overvoltage category: III
  • Pollution degree: 3
  • Flammability class per UL94: V0
Technical specifications
Anschluss Push-in
Ausführung Buchse
Bauform gerade
Farbe weiß
Kabeldurchmesser 4,5 bis 10 mm
Leiterquerschnitt 0,25-1,5 mm²
Montage Kabelmontage
Nennspannung IEC 250 V
Nennspannung UL/CSA 600 V
Nennstrom IEC 16 A
Nennstrom UL/CSA 14 A
Polzahl 3-polig
Stifttemperatur 85 °C
Verriegelung Ja
Logistics
Ursprungsland DE
Zolltarifnummer 85366990
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
