890-133 | WAGO

Plug, 3 pole, cable assembly, push-in, 0.25-1.5 mm², gray, 890-133

Order No.: 45P2854
EAN: 4045454233013
MPN:
890-133
Series: WINSTA MINI

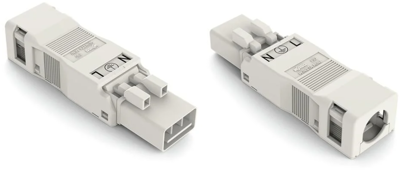

890-133 WAGO Device Connectors Image 1
890-133 WAGO Device Connectors Image 2
890-133 WAGO Device Connectors Image 3
Image may differ
Unit Price (€ / pc.)
4.2364 € *
Available: 45 pcs.
Leadtime: 3 Weeks **
Total Price:
4.24 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
4.2364 €

Plug, 890-133, WAGO

Plug, with strain relief housing, 3-pole, 1.50 mm², white.

Features

  • Protected against mismating
  • Overvoltage category: III
  • Pollution degree: 3
  • Flammability class per UL94: V0
Technical specifications
Anschluss Push-in
Ausführung Stecker
Bauform gerade
Farbe grau
Kabeldurchmesser 4,5 bis 10 mm
Leiterquerschnitt 0,25-1,5 mm²
Montage Kabelmontage
Nennspannung IEC 250 V
Nennspannung UL/CSA 600 V
Nennstrom IEC 16 A
Nennstrom UL/CSA 14 A
Polzahl 3-polig
Stifttemperatur 85 °C
Verriegelung Ja
Logistics
Ursprungsland DE
Zolltarifnummer 85366990
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
