890-134 | WAGO

Plug, 4 pole, cable assembly, push-in, 0.25-1.5 mm², white, 890-134

Order No.: 45P2855
EAN: 4045454233020
MPN:
890-134
Series: WINSTA MINI
890-134 WAGO Device Connectors Image 1
890-134 WAGO Device Connectors Image 2
890-134 WAGO Device Connectors Image 3
Image may differ
Unit Price (€ / pc.)
5.1646 € *
Available: 0 pcs.
Leadtime: 3 Weeks **
Total Price:
5.16 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
5.1646 €

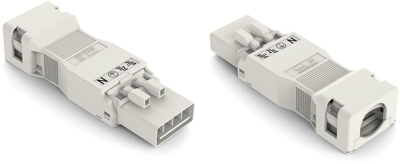

Plug, 890-134, WAGO

Plug, with strain relief housing, 4-pole, 1.50 mm², white.

Features

  • Protected against mismating
  • Overvoltage category: III
  • Pollution degree: 3
  • Flammability class per UL94: V0
Technical specifications
Anschluss Push-in
Ausführung Stecker
Bauform gerade
Farbe weiß
Kabeldurchmesser 6,5 bis 10,5 mm
Leiterquerschnitt 0,25-1,5 mm²
Montage Kabelmontage
Nennspannung IEC 400 V
Nennspannung UL/CSA 600 V
Nennstrom IEC 16 A
Nennstrom UL/CSA 12 A
Polzahl 4-polig
Stifttemperatur 85 °C
Verriegelung Ja
Logistics
Ursprungsland DE
Zolltarifnummer 85366990
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
