890-232 | WAGO

Plug, 2 pole, push-in, 0.25-1.5 mm², white, 890-232

Order No.: 43P2682
EAN: 4045454233211
MPN:
890-232
Series: 890
WAGO

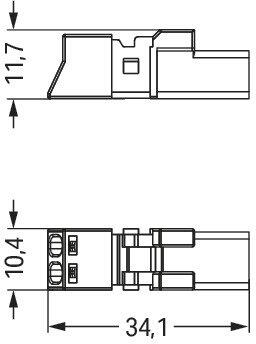

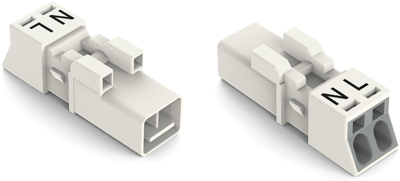

890-232 WAGO Device Connectors Image 1
890-232 WAGO Device Connectors Image 2
Image may differ
Unit Price (€ / pc.)
2.2491 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
2.25 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
2.2491 €

Plug, 890-232, WAGO

The 890-232 is a connector/plug that is a pluggable solution for your application in control cabinets, on PCBs or for lighting connections.

Features

  • Protection against mismating
  • Easy tool-free operation
  • Overvoltage category: III
  • Pollution degree: 3
  • Flammability class per UL94: V0

Applications

  • For lighting applications
Technical specifications
Connection push-in
Version plug
Design straight
Colour white
Cable cross-section 0.25-1.5 mm²
Rated voltage IEC 250 V
Rated voltage UL/CSA 600 V
Rated current IEC 16 A
Rated current UL/CSA 14 A
Pin number 2 pole
Pin temperature 85 °C
Type of locking Yes
Logistics
Country of origin DE
Customs tariff number 85366990
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
