890-243 | WAGO
Socket, 3 pole, push-in, 0.25-1.5 mm², gray, 890-243
Unit Price (€ / pc.)
4.2602 € *
Available: 19 pcs.
Leadtime: 4 Weeks **
Total Price:
4.26 € *
Price list
Quantity
Price per unit*
1 pcs.
4.2602 €
10 pcs.
3.9270 €
50 pcs.
3.5700 €
100 pcs.
3.2130 €
*incl. VAT plus shipping costs
**Subject to prior sale

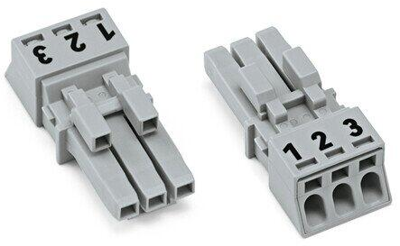

Socket, 890-243, WAGO
Socket, 3-pole, code B, 1.50 mm², gray.
Features
- Protected against mismating
- Overvoltage category: III
- Pollution degree: 3
- Flammability class per UL94: V0
Technical specifications
| Anschluss | Push-in | |
| Ausführung | Buchse | |
| Bauform | gerade | |
| Farbe | grau | |
| Leiterquerschnitt | 0,25-1,5 mm² | |
| Nennspannung IEC | 250 V | |
| Nennspannung UL/CSA | 600 V | |
| Nennstrom IEC | 16 A | |
| Nennstrom UL/CSA | 14 A | |
| Polzahl | 3-polig | |
| Stifttemperatur | 85 °C | |
| Verriegelung | Ja |
Download
Logistics
| Ursprungsland | PL |
| Zolltarifnummer | 85366990 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
