890-255 | WAGO

Plug, 5 pole, push-in, 1.5 mm², gray, 890-255

Order No.: 45P8131
EAN: 4055143499736
MPN:
890-255
Series: WINSTA MINI

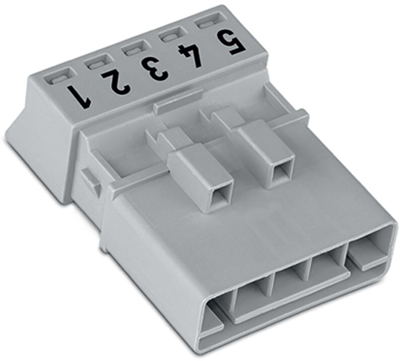

890-255 WAGO Device Connectors Image 1

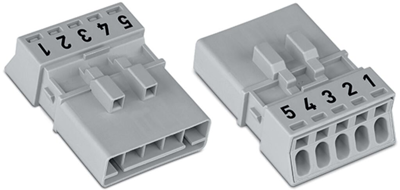

890-255 WAGO Device Connectors Image 2

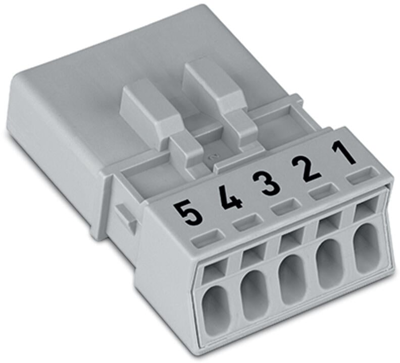

890-255 WAGO Device Connectors Image 3

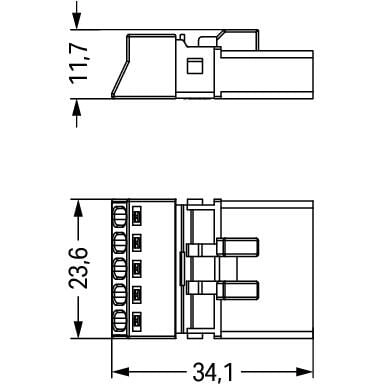

890-255 WAGO Device Connectors Image 4
Image may differ
Unit Price (€ / pc.)
6.0214 € *
Available: 0 pcs.
Leadtime: 4 Weeks **
Total Price:
6.02 € *
Price list
Quantity
Price per unit*
1 pcs.
6.0214 €
10 pcs.
5.5454 €
50 pcs.
5.0456 €
100 pcs.
4.4387 €
*incl. VAT plus shipping costs
**Subject to prior sale

Male connector, 890-255, WAGO

The WINSTA MINI male connector/plug with protection type IP20. Whether on PCBs, in control cabinets, or for connecting lights - pluggable installation connectors from WAGO allow you to establish connections according to a wide variety of requirements in next to no time. The mechanical coding and color coding of the pluggable installation connector ensure error-free installation of the individual components - including protection against mismating. Solutions like the WINSTA MINI pluggable installation connectors with B coding are ideal for process control, such as for lighting or in data networks.

Where space is tight, the smallest pluggable connection system, WINSTA MINI, conveniently displays its strengths. It is very compact, and with Push-in CAGE CLAMP spring pressure connection technology, it can also be installed quickly, as the connection is low-maintenance and requires no screw connections. WINSTA is the pluggable connection system that is ideally tailored to the strict requirements of electrical installation. It allows error-free installation of cables and components, quickly and reliably.

Features

  • Protection against mismating eliminates errors
  • Consistent IP40 protection
  • With B coding for use in automation of processes, such as lighting technology
  • Custom-engineered solutions
  • Fast, secure installation
Technical specifications
Connection Push-in
Version Stecker
Design gerade
Colour grau
Cable cross-section 1,5 mm²
Rated voltage IEC 400 V
Rated voltage UL/CSA 600 V
Rated current IEC 16 A
Rated current UL/CSA 12 A
Line filter present No
Switch illuminated No
Power switch available No
Pin number 5-polig
Fuse holder present No
Type of locking Ja
Logistics
Country of origin PL
Customs tariff number 85366990
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
