890-275/073-000 | WAGO

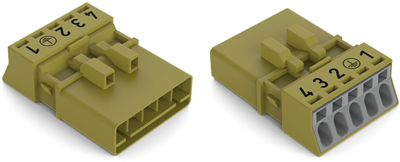

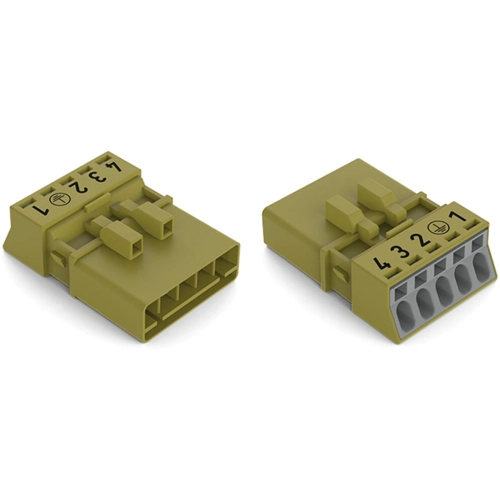

Male connector, 890-275/073-000, WAGO

The WINSTA MINI male connector/plug 5-pole. On PCBs, in control cabinets, or for connecting lights - pluggable installation connectors from WAGO allow you to make connections according to a huge variety of requirements in next to no time. For greater protection in electrical installations, the pluggable installation connector is provided with mechanical protection against mismating. Pluggable installation connectors with B coding from the WINSTA MINI line are available in pink, light green, or gray, allowing you to distinguish different circuits, for example for pumps, lighting, or sun blinds. Your own pole marking is possible as well. WINSTA MINI consistently displays its advantageous properties. It is very compact, and, with Push-in CAGE CLAMP spring pressure connection technology, it can be installed quickly, as the connection is low-maintenance and can be performed without screw connections.

The WINSTA Pluggable Connection System is ideally tailored to the strict requirements of building installation. It makes electrical installation pluggable, and therefore faster, more reliable, and error-free. The use of this pre-assembled system reduces assembly times and errors during installation at the construction site.

Features

• Pluggable installation connectors with protection against mismating

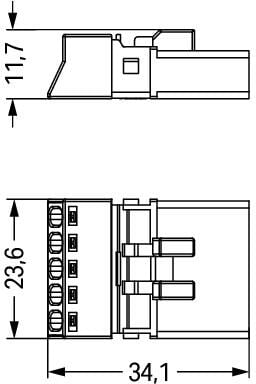

• Compact design for conductors with a cross-section up to 1.5 mm²
• With B coding for controllers such as sun blinds and lighting fixtures
• Flexible installation to save space
• Rapid, structured electrical installation
