890-715 | WAGO

Plug, 5 pole, snap-in, push-in, 0.25-1.5 mm², black, 890-715

Order No.: 46F8322
EAN: 4045454233488
MPN:
890-715
Series: WINSTA MINI
890-715 WAGO Device Connectors Image 1
890-715 WAGO Device Connectors Image 2
890-715 WAGO Device Connectors Image 3
Image may differ
Unit Price (€ / pc.)
4.9623 € *
Available: 0 pcs.
Leadtime: 4 Weeks **
Total Price:
4.96 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
4.9623 €

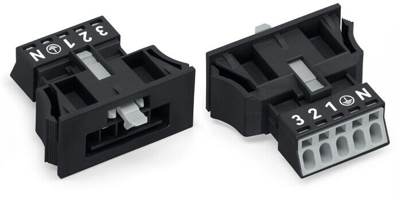

Plug, 890-715, WAGO

Snap-in plug, 5-pole, code A, 1.50 mm², black.

Features

  • Protected against mismating
  • Overvoltage category: III
  • Pollution degree: 3
  • Flammability class per UL94: V0
Technical specifications
Connection Push-in
Version Stecker
Design gerade
Colour schwarz
Cable cross-section 0,25-1,5 mm²
Assembly Snap-in
Rated voltage IEC 400 V
Rated voltage UL/CSA 600 V
Rated current IEC 13 A
Rated current UL/CSA 12 A
Pin number 5-polig
Pin temperature 85 °C
Type of locking Ja
Logistics
Country of origin PL
Customs tariff number 85366990
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
