890-753 | WAGO
Plug, 3 pole, snap-in, push-in, 0.25-1.5 mm², gray, 890-753
Unit Price (€ / pc.)
4.2483 € *
Available: 49 pcs.
Leadtime: 4 Weeks **
Total Price:
4.25 € *
Price list
Quantity
Price per unit*
1 pcs.
4.2483 €
10 pcs.
3.9151 €
50 pcs.
3.5462 €
100 pcs.
3.1892 €
*incl. VAT plus shipping costs
**Subject to prior sale

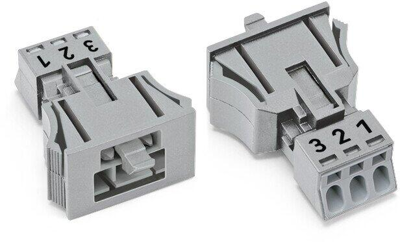

Plug, 890-753, WAGO
Snap-in plug, 3-pole, code B, 1.50 mm², gray.
Features
- Protected against mismating
- Overvoltage category: III
- Pollution degree: 3
- Flammability class per UL94: V0
Technical specifications
| Connection | Push-in | |
| Version | Stecker | |
| Design | gerade | |
| Colour | grau | |
| Cable cross-section | 0,25-1,5 mm² | |
| Assembly | Snap-in | |
| Rated voltage IEC | 250 V | |
| Rated voltage UL/CSA | 600 V | |
| Rated current IEC | 16 A | |
| Rated current UL/CSA | 14 A | |
| Pin number | 3-polig | |
| Pin temperature | 85 °C | |
| Type of locking | Ja |
Download
Logistics
| Country of origin | PL |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
