890-754/062-000 | WAGO

Plug, 4 pole, snap-in, push-in, 0.25-1.5 mm², gray, 890-754/062-000

Order No.: 45P3015
EAN: 4055143427999
MPN:
890-754/062-000
Series: WINSTA MINI

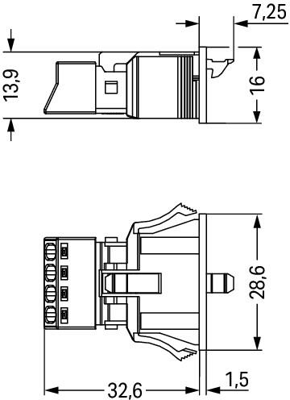

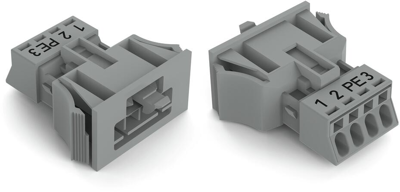

890-754/062-000 WAGO Device Connectors Image 1
890-754/062-000 WAGO Device Connectors Image 2
Image may differ
Unit Price (€ / pc.)
3.7128 € *
Available: 0 pcs.
Leadtime: 4 Weeks **
Total Price:
3.71 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
3.7128 €

Plug, 890-754/062-000, WAGO

The 890-754/062-000 is a connector/plug that supports rapid and correct installation. This pluggable installation connector is useful when requirements repeat or are planned on a specific pattern.

Features

  • Protection against mismating
  • Convenient installation and commissioning
  • Overvoltage category: III
  • Pollution degree: 3
  • Flammability class per UL94: V0

Applications

  • For automation controllers
  • For lighting applications
Technical specifications
Anschluss Push-in
Ausführung Stecker
Bauform gerade
Farbe grau
Leiterquerschnitt 0,25-1,5 mm²
Montage Snap-in
Nennspannung IEC 400 V
Nennspannung UL/CSA 600 V
Nennstrom IEC 16 A
Nennstrom UL/CSA 12 A
Polzahl 4-polig
Stifttemperatur 85 °C
Verriegelung Ja
Logistics
Ursprungsland PL
Zolltarifnummer 85366990
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
