890-763 | WAGO
Socket, 3 pole, snap-in, push-in, 0.25-1.5 mm², gray, 890-763
Unit Price (€ / pc.)
3.9032 € *
Available: 0 pcs.
Leadtime: On Request **

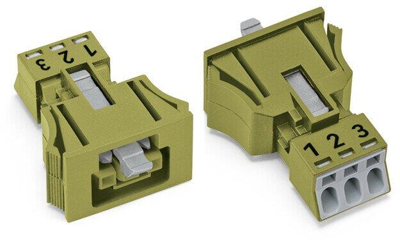

Socket, 890-763, WAGO
Snap-in socket, 3-pole, code B, 1.50 mm², light green.
Features
- Protected against mismating
- Overvoltage category: III
- Pollution degree: 3
- Flammability class per UL94: V0
Technical specifications
| Connection | push-in | |
| Version | socket | |
| Design | straight | |
| Colour | gray | |
| Cable cross-section | 0.25-1.5 mm² | |
| Assembly | snap-in | |
| Rated voltage IEC | 250 V | |
| Rated voltage UL/CSA | 600 V | |
| Rated current IEC | 16 A | |
| Rated current UL/CSA | 14 A | |
| Pin number | 3 pole | |
| Pin temperature | 85 °C | |
| Type of locking | Yes |
Download
Logistics
| Country of origin | PL |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
