890-764/072-000 | WAGO

Socket, 4 pole, snap-in, push-in, 0.25-1.5 mm², light green, 890-764/072-000

Order No.: 45P3026
EAN: 4055143428002
MPN:
890-764/072-000
Series: WINSTA MINI

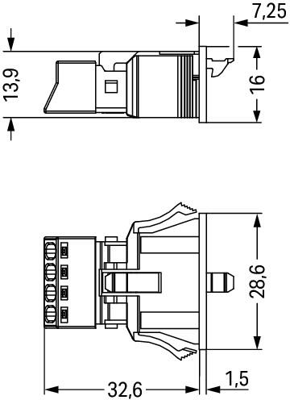

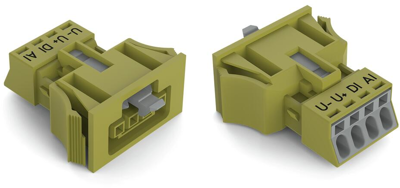

890-764/072-000 WAGO Device Connectors Image 1
890-764/072-000 WAGO Device Connectors Image 2
Image may differ
Unit Price (€ / pc.)
4.2245 € *
Available: 0 pcs.
Leadtime: 4 Weeks **
Total Price:
4.22 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
4.2245 €

Socket, 890-764/072-000, WAGO

The 890-764/072-000 is a connector/socket that is a pluggable installation connector which is useful when requirements repeat or are distributed on a specified grid, for example for installing grid lighting or flush-mount lighting .

Features

  • Protection against mismating
  • Convenient installation and commissioning
  • Overvoltage category: III
  • Pollution degree: 3
  • Flammability class per UL94: V0

Applications

  • For signal transmission
  • For power transmission
Technical specifications
Anschluss Push-in
Ausführung Buchse
Bauform gerade
Farbe hellgrün
Leiterquerschnitt 0,25-1,5 mm²
Montage Snap-in
Nennspannung IEC 400 V
Nennspannung UL/CSA 600 V
Nennstrom IEC 16 A
Nennstrom UL/CSA 12 A
Polzahl 4-polig
Stifttemperatur 85 °C
Verriegelung Ja
Logistics
Ursprungsland PL
Zolltarifnummer 85366990
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
