890-774/072-000 | WAGO

Plug, 4 pole, snap-in, push-in, 0.25-1.5 mm², light green, 890-774/072-000

Order No.: 45P3036
EAN: 4055143427982
MPN:
890-774/072-000
Series: WINSTA MINI

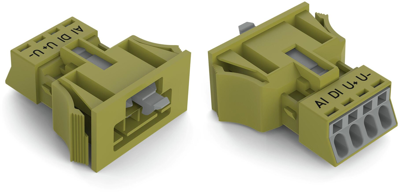

890-774/072-000 WAGO Device Connectors Image 1
890-774/072-000 WAGO Device Connectors Image 2
Image may differ
Unit Price (€ / pc.)
3.7128 € *
Available: 0 pcs.
Leadtime: 4 Weeks **
Total Price:
3.71 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
3.7128 €

Plug, 890-774/072-000, WAGO

The 890-774/072-000 is a connector/plug that is a pluggable solution for your application in control cabinets, on PCBs or for lighting connections.

Features

  • Protection against mismating
  • Convenient installation and commissioning
  • Overvoltage category: III
  • Pollution degree: 3
  • Flammability class per UL94: V0

Applications

  • For signal transmission
  • For power transmission
Technical specifications
Anschluss Push-in
Ausführung Stecker
Bauform gerade
Farbe hellgrün
Leiterquerschnitt 0,25-1,5 mm²
Montage Snap-in
Nennspannung IEC 400 V
Nennspannung UL/CSA 600 V
Nennstrom IEC 16 A
Nennstrom UL/CSA 12 A
Polzahl 4-polig
Stifttemperatur 85 °C
Verriegelung Ja
Logistics
Ursprungsland PL
Zolltarifnummer 85366990
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
