890-802 | WAGO
Socket, 2 pole, gray, 890-802
Unit Price (€ / pc.)
1.9278 € *
Available: 0 pcs.
Leadtime: On Request **

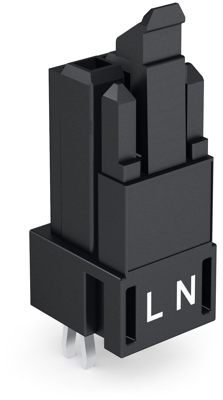

Socket, 890-802, WAGO
The 890-802 is a connector/socket that is a pluggable PCB connector that give you a versatile pluggable connection system for your devices that meets all the requirements for a robust device connection that is easy to put into operation.
Features
- Protection against mismating
- Quick replacement of defective units during ongoing operation
- Overvoltage category: III
- Pollution degree: 3
- Flammability class per UL94: V0
Technical specifications
| Version | socket | |
| Design | straight | |
| Colour | gray | |
| Rated voltage IEC | 250 V | |
| Rated voltage UL/CSA | 600 V | |
| Rated current IEC | 16 A | |
| Rated current UL/CSA | 14 A | |
| Pin number | 2 pole | |
| Pin temperature | 85 °C | |
| Type of locking | Yes |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
