750-1500 | WAGO
Output module for 750 series, Outputs: 16, (W x H x D) 12 x 100 x 741 mm, 750-1500
Unit Price (€ / pc.)
162.7444 € *
Available: 0 pcs.
Leadtime: 5 Weeks **

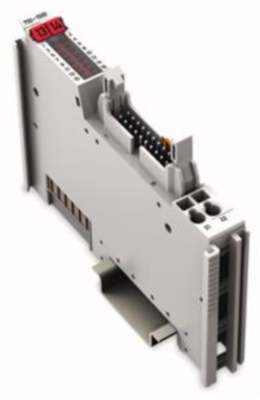

Digital output, 750-1500, WAGO
16-channel digital output, 24 VDC, 0.5 A, Ribbon cable.
Features
- This digital output module features 16 channels in a width of just 12 mm
- It transmits binary control signals from the automation device to the connected actuators (e.g., magnetic valves, contactors, transmitters, relays or other electrical loads)
- The module connects to electronic modules via a 20-pole ribbon cable

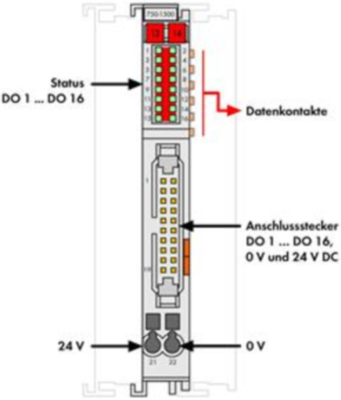

- A green LED indicates the signal state of each channel
- Field and system levels are electrically isolated
Technical specifications
| Anzahl der digitalen Ausgänge | 16 | |
| Ausführung | Ausgangsmodul | |
| Breite | 12 mm | |
| Geeignet für | 750 Serie | |
| Höhe | 100 mm | |
| Montage | DIN-Schiene | |
| Tiefe | 741 mm |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85371098 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
| Substanz Beschreibung | Diphenyl(2,4,6-trimethylbenzoyl)phosphinoxid, Blei |
