750-1506 | WAGO

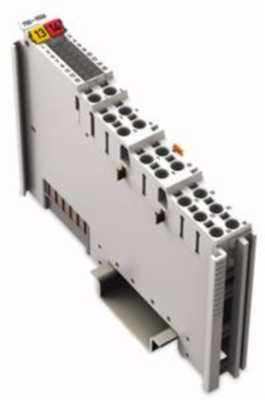

Input/output module for 750 series, Inputs: 8, Outputs: 8, (W x H x D) 12 x 100 x 69 mm, 750-1506
Unit Price (€ / pc.)
148.9523 € *
Available: 0 pcs.
Leadtime: On Request **
Digital input, 750-1506, WAGO

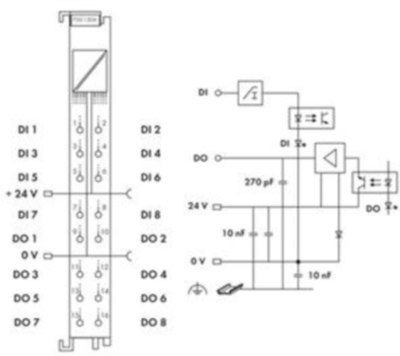

8-channel digital input/output, 24 VDC, 0.5 A.
Features

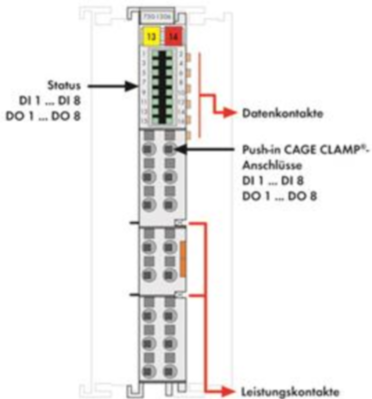

- This digital input/output module features eight inputs and eight outputs in a width of just 12 mm
- It receives binary control signals from digital field devices and transmits them to the connected actuators (e.g., magnetic valves, contactors, transmitters, relays or other electrical loads)
- The module features Push-in CAGE CLAMP connections enabling solid conductors to be connected by simply pushing them in
- A green LED indicates the signal state of each channel
- Field and system levels are electrically isolated
Technical specifications
| Number of digital outputs | 8 | |
| Number of digital inputs | 8 | |
| Version | input/output module | |
| Width | 12 mm | |
| Suitable for | 750 series | |
| Height | 100 mm | |
| Assembly | DIN rail | |
| Depth | 69 mm |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85371098 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Diphenyl(2,4,6-trimethylbenzoyl)phosphine oxide, lead |
