750-1516/040-000 | WAGO

Output module, Outputs: 8, (W x H x D) 12 x 100 x 69 mm, 750-1516/040-000

Order No.: 45P7718
EAN: 4066966204070
MPN:
750-1516/040-000
Series: 750
WAGO

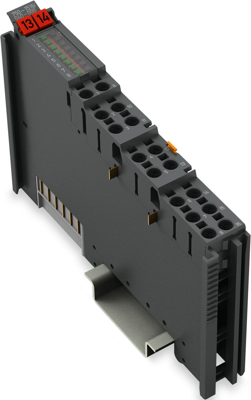

750-1516/040-000 WAGO Digital modules Image 1

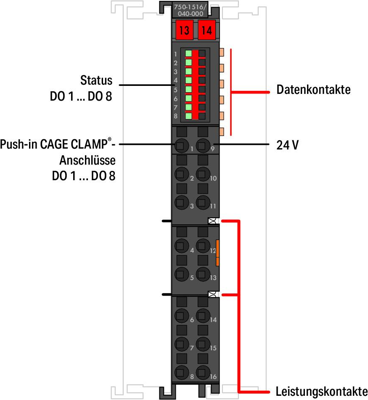

750-1516/040-000 WAGO Digital modules Image 2
Image may differ
Unit Price (€ / pc.)
155.89 € *
Available: 0 pcs.
Leadtime: 3 Weeks **
Total Price:
155.89 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
155.89 €

Digital output module, 750-1516/040-000, WAGO

This digital output module is a 2-wire device featuring eight channels in a width of just 12 mm (0.47 inch). It transmits binary control signals from the automation device to the connected actuators (e.g., magnetic valves, contactors, transmitters, relays or other electrical loads). The module features Push-in CAGE CLAMP® connections enabling solid conductors to be connected by simply pushing them in. A green LED indicates the signal state of each channel. Field and system levels are electrically isolated. An operating tool with a 2.5 mm blade (210-719) is required to open the Push-in CAGE CLAMP® connections.

Features

  • An extended temperature range
  • Greater immunity to impulse voltages and electromagnetic interference
  • Higher vibration and shock resistance
Technical specifications
Anzahl der digitalen Ausgänge 8
Ausführung Ausgangsmodul
Breite 12 mm
Höhe 100 mm
Montage DIN-Schiene
Tiefe 69 mm
Logistics
Ursprungsland DE
Zolltarifnummer 85371098
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei No
