750-432 | WAGO

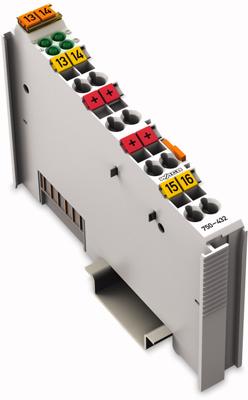

Input terminal for 750 series, Inputs: 4, (W x H x D) 12 x 100 x 69.8 mm, 750-432

Order No.: 73F2034
EAN: 4045454476151
MPN:
750-432
Series: 750
WAGO
750-432 WAGO Digital modules
Image may differ
Unit Price (€ / pc.)
47.60 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
47.60 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
47.60 €

Analog and digital input terminals, type Wago 750.

For TS 35 CAGE CLAMP connection; Degree of protection: IP 20. Operating temperatures: 0 to +55 °C. Width: 12 mm.

4-channel digital input terminals, type 750-432.

Positive switching; Number of inputs: 4. Current consumption: 5.5 mA. Voltage on power contacts: 24 VDC. Signal voltage (0/I): –3.0 to +5.0 VDC/15 to 30 VDC. Data length (internal): 4 bits.

Type: 750-432, 4-channel input terminal

Technical specifications
Number of digital inputs 4
Version input terminal
Width 12 mm
Suitable for 750 series
Height 100 mm
Assembly DIN rail
Depth 69.8 mm
Logistics
Country of origin DE
Customs tariff number 85389099
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
Substance description boron trioxide, lead monoxide, lead
