750-508/040-000 | WAGO

Output module for 750 series, Outputs: 2, (W x H x D) 12 x 100 x 678 mm, 750-508/040-000

Order No.: 44P5390
EAN: 4050821460220
MPN:
750-508/040-000
Series: 750
WAGO

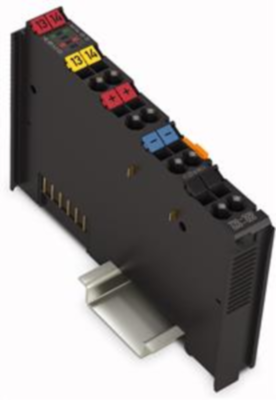

750-508/040-000 WAGO Digital modules Image 1

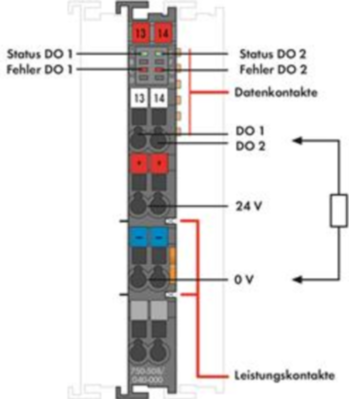

750-508/040-000 WAGO Digital modules Image 2

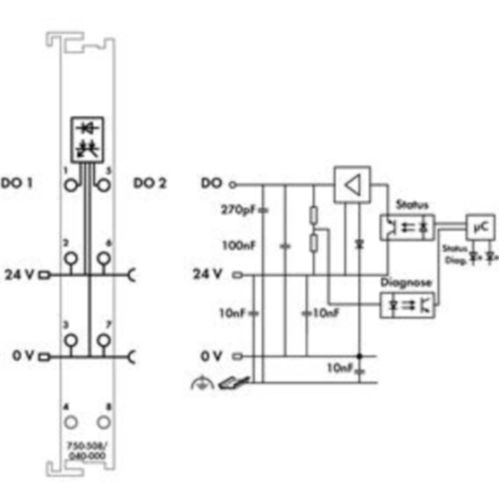

750-508/040-000 WAGO Digital modules Image 3
Image may differ
Unit Price (€ / pc.)
142.0622 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
142.06 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
142.0622 €

Digital output, 750-508/040-000, WAGO

2-channel digital output, 24 VDC, 2 A, Diagnostics, Extreme.

Features

  • This digital output module transmits control signals from the automation device to the connected actuators
  • All outputs are short-circuit-protected
  • The module detects the following errors: overload, short circuit and wire break
  • The status is transmitted to the fieldbus coupler and indicated by LEDs
  • The module is a 3-wire device
  • Field and system levels are electrically isolated
  • Greater immunity to impulse voltages and electromagnetic interference
  • Higher vibration and shock resistance
Technical specifications
Number of digital outputs 2
Version output module
Width 12 mm
Suitable for 750 series
Height 100 mm
Assembly DIN rail
Depth 678 mm
Logistics
Country of origin DE
Customs tariff number 85371098
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
Substance description Lead
