750-531/000-800 | WAGO
Output module for 750 series, Outputs: 4, (W x H x D) 12 x 100 x 698 mm, 750-531/000-800
Unit Price (€ / pc.)
57.9173 € *
Available: 0 pcs.
Leadtime: 5 Weeks **

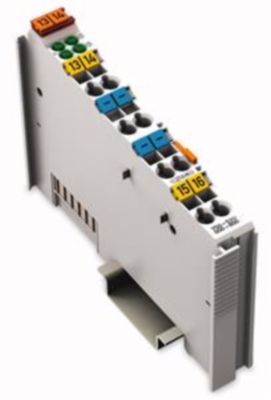

Digital output, 750-531/000-800, WAGO
4-channel digital output, 24 VDC, 0.5 A, Interference-free, 2-conductor connection.
Features
- This digital output module transmits control signals from the automation device to the connected actuators

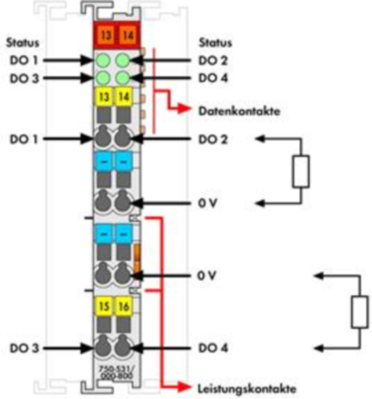

- The module has four output channels and four 0 V outputs, providing a direct connection to four 2-wire actuators
- All outputs are short-circuit-protected
- Field and system levels are electrically isolated
Technical specifications
| Anzahl der digitalen Ausgänge | 4 | |
| Ausführung | Ausgangsmodul | |
| Breite | 12 mm | |
| Geeignet für | 750 Serie | |
| Höhe | 100 mm | |
| Montage | DIN-Schiene | |
| Tiefe | 698 mm |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85371098 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
| Substanz Beschreibung | Blei |
