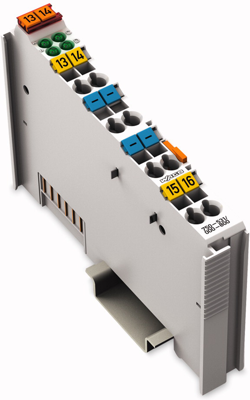

750-531 | WAGO
Output terminal for 750 series, Outputs: 4, (W x H x D) 12 x 100 x 69.8 mm, 750-531
Unit Price (€ / pc.)
53.8237 € *
Available: 0 pcs.
Leadtime: On Request **
Analog and digital output terminals, type Wago 750.
For TS 35 with CAGE CLAMP terminals; Degree of protection: IP 20. Operating temperatures: 0 to +55 °C. Width: 12 mm.
4-channel digital output terminals, type 750-531.
Number of outputs: 4. Current consumption: 7.0 mA. Voltage on power contacts: 24 VDC. Load type: resistive, inductive, lamp load. Output current: max. 0.5 A short circuit-proof. Data length: 4 bits.
Type: 750–531, 4–channel output terminal
Technical specifications
| Number of digital outputs | 4 | |
| Version | output terminal | |
| Width | 12 mm | |
| Suitable for | 750 series | |
| Height | 100 mm | |
| Assembly | DIN rail | |
| Depth | 69.8 mm |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85371098 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Diphenyl(2,4,6-trimethylbenzoyl)phosphine oxide, lead |
