750-537 | WAGO
Output module for 750 series, Outputs: 8, (W x H x D) 12 x 100 x 678 mm, 750-537
Unit Price (€ / pc.)
111.4435 € *
Available: 0 pcs.
Leadtime: On Request **

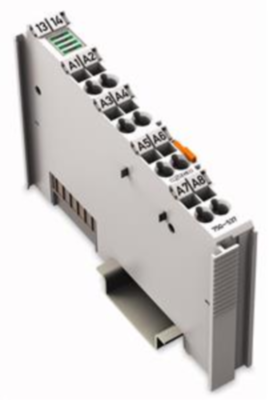

Digital output, 750-537, WAGO

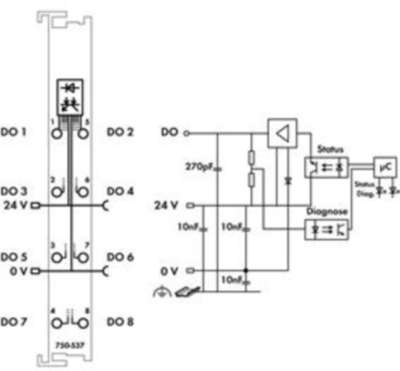

8-channel digital output, 24 VDC, 0.5 A, Diagnostics.
Features
- This digital output module transmits control signals from the automation device to the connected actuators
- All outputs are short-circuit-protected
- The module detects the following errors: overload, short circuit and wire break

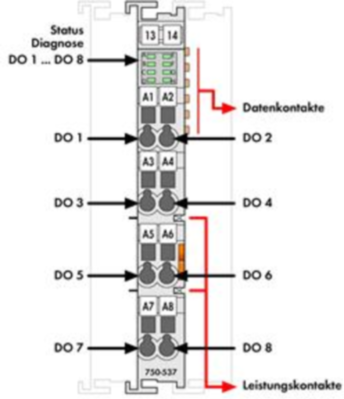

- The status is transmitted to the fieldbus coupler and indicated by LEDs
- This module has eight output channels and eight actuators may be connected to it
- Field and system levels are electrically isolated
Technical specifications
| Number of digital outputs | 8 | |
| Version | output module | |
| Width | 12 mm | |
| Suitable for | 750 series | |
| Height | 100 mm | |
| Assembly | DIN rail | |
| Depth | 678 mm |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85371098 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | 2,2',6,6'-tetrabromo-4,4'-isopropylidenediphenol, lead |
