753-433 | WAGO
Input module, Inputs: 4, (W x H x D) 12 x 100 x 698 mm, 753-433
Unit Price (€ / pc.)
50.7059 € *
Available: 0 pcs.
Leadtime: 5 Weeks **

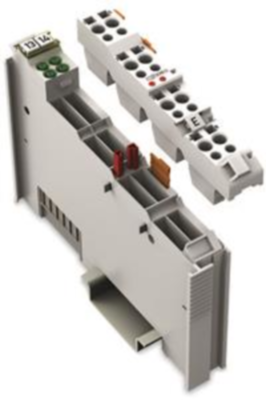

Digital input, 753-433, WAGO

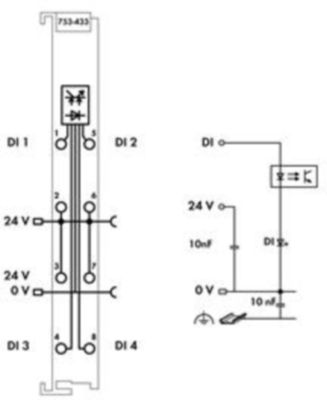

4-channel digital input, 24 VDC, 0.2 ms, 2-conductor connection.
Features

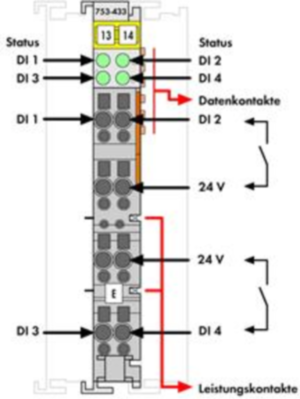

- This digital input module features eight channels in a width of just 12 mm. It receives control signals from digital field devices (e.g., sensors)
- The module has four input channels and four 24 V outputs, providing a direct connection to four 2-wire sensors
- Each input module has a noise-rejection filter
- Field and system levels are electrically isolated
Technical specifications
| Anzahl der digitalen Eingänge | 4 | |
| Ausführung | Eingangsmodul | |
| Breite | 12 mm | |
| Höhe | 100 mm | |
| Montage | DIN-Schiene | |
| Tiefe | 698 mm |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85389099 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
| Substanz Beschreibung | Bortrioxid, Bleimonoxid (Bleioxid), Blei |
