753-536 | WAGO

Output module, Outputs: 8, (W x H x D) 12 x 100 x 69 mm, 753-536

Order No.: 44P5722
EAN: 4045454826413
MPN:
753-536
Series: 753
WAGO

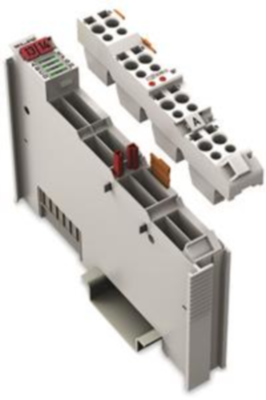

753-536 WAGO Digital modules Image 1
753-536 WAGO Digital modules Image 2
753-536 WAGO Digital modules Image 3
Image may differ
Unit Price (€ / pc.)
99.2579 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
99.26 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
99.2579 €

Digital output, 753-536, WAGO

8-channel digital output, 24 VDC, 0.5 A, Low-side switching.

Features

  • This digital output module features eight channels in a width of just 12 mm
  • The module transmits control signals from an automation device to connected actuators
  • All outputs are short-circuit-protected
  • Field and system levels are electrically isolated
Technical specifications
Number of digital outputs 8
Version output module
Width 12 mm
Height 100 mm
Assembly DIN rail
Depth 69 mm
Logistics
Country of origin DE
Customs tariff number 85371098
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
Substance description Diphenyl(2,4,6-trimethylbenzoyl)phosphine oxide, lead
