753-537 | WAGO

Output module, Outputs: 8, (W x H x D) 12 x 100 x 69 mm, 753-537

Order No.: 44P5723
EAN: 4050821142225
MPN:
753-537
Series: 753

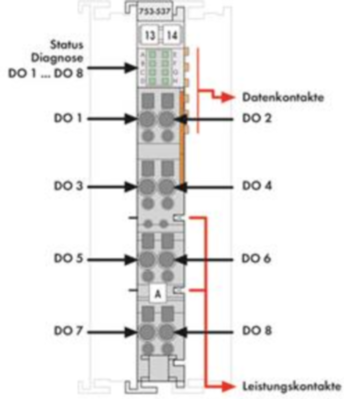

753-537 WAGO Digital modules Image 1

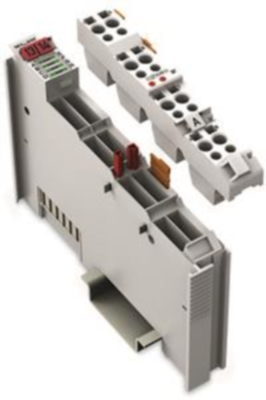

753-537 WAGO Digital modules Image 2

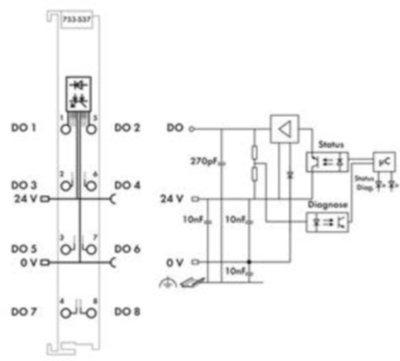

753-537 WAGO Digital modules Image 3
Image may differ
Unit Price (€ / pc.)
116.3939 € *
Available: 0 pcs.
Leadtime: 5 Weeks **
Total Price:
116.39 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
116.3939 €

Digital output, 753-537, WAGO

8-channel digital output, 24 VDC, 0.5 A, Diagnostics.

Features

  • This digital output module transmits control signals from the automation device to the connected actuators
  • All outputs are short-circuit-protected
  • The module detects the following errors: overload, short circuit and wire break
  • The status is transmitted to the fieldbus coupler and indicated by LEDs
  • This module has eight output channels and eight actuators may be connected to it
  • Field and system levels are electrically isolated
Technical specifications
Anzahl der digitalen Ausgänge 8
Ausführung Ausgangsmodul
Breite 12 mm
Höhe 100 mm
Montage DIN-Schiene
Tiefe 69 mm
Logistics
Ursprungsland DE
Zolltarifnummer 85371098
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei No
Substanz Beschreibung Tetrabrombisphenol A (TBBPA), Blei
