750-613/040-000 | WAGO

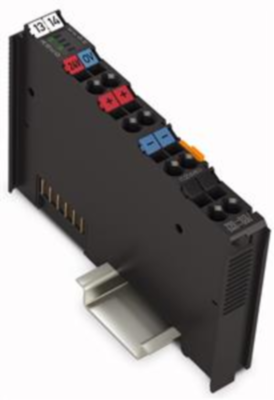

Power supply, 750-613/040-000, WAGO

This internal system supply module increases the capacity of the system supply by 2 A for fieldbus nodes with high current requirements (sum of the internal current consumption of the I/O modules). If required, additional system supply modules with bus power supply can be used. The module also supplies field-side power to the adjacent modules via the power jumper contacts.

Features

• An extended temperature range
• Greater immunity to impulse voltages and electromagnetic interference
• Higher vibration and shock resistance
