2002-1981/1000-434 | WAGO
2-wire fuse terminal, 2 pole, 0.25-4.0 mm², 400 V, 10 A, 2002-1981/1000-434
Unit Price (€ / pc.)
7.378 € *
Available: 0 pcs.
Leadtime: 3 Weeks **

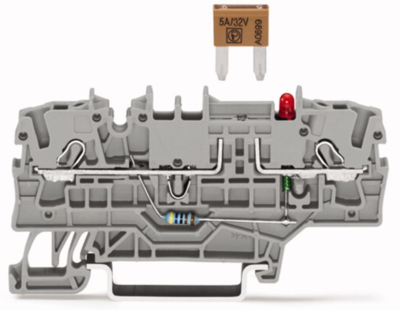

2-Conductor fuse terminal block, 2002-1981/1000-434, Wago
2-conductor fuse terminal block for automotive fuses with test possibility 24 V with defect indication by LED Current consumption LED: 4.8 mA gray
Technical specifications
| Version | 2-Leiter-Sicherungsklemme | |
| Number of terminals | 2 | |
| Pin number | 2-polig | |
| Cable cross-section | 0,25-4,0 mm² | |
| AWG cross-section | AWG 22 bis 12 | |
| Rated Voltage | 400 V | |
| Rated surge voltage | 6000 V | |
| Rated current | 10 A | |
| Degree of soiling | 3 | |
| Length | 32.9 mm | |
| Width | 5.2 mm | |
| Height | 72.9 mm | |
| Connection | Zugfederanschluss | |
| Colour | grau |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369095 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
