2002-2611 | WAGO
Double-deck fuse clamp, 4 pole, 0.25-4.0 mm², 250 V, 6.3 A, 2002-2611
Unit Price (€ / pc.)
7.0805 € *
Available: 0 pcs.
Leadtime: 10 Weeks **
Total Price:
7.08 € *
Price list
Quantity
Price per unit*
1 pcs.
7.0805 €
10 pcs.
6.5093 €
50 pcs.
5.9262 €
100 pcs.
5.3312 €
*incl. VAT plus shipping costs
**Subject to prior sale

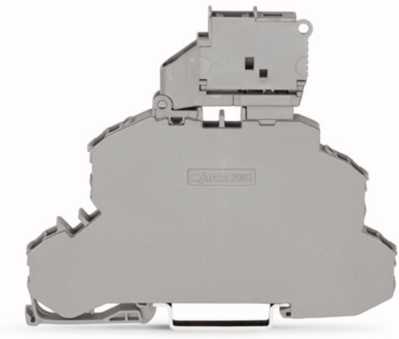

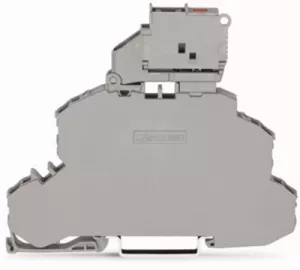

Double-deck fuse terminal block, 2002-2611, Wago
Double deck fuse terminal block, with swiveling fuse holder, feed-through/fuse terminal block, for G-fuse link 5x20 mm, L/L, without defect indication, for mounting rail 35x15 and 35x7.5, 2.5 mm², push-in CAGE CLAMP, 2.50 mm², gray
Technical specifications
| Anschluss | Zugfederanschluss | |
| Anzahl der Klemmstellen | 4 | |
| Ausführung | Doppelstock-Sicherungsklemme | |
| AWG-Leiterquerschnitt | AWG 22 bis 12 | |
| Bemessungsspannung | 250 V | |
| Bemessungsstoßspannung | 6000 V | |
| Breite | 6.2 mm | |
| Farbe | grau | |
| Höhe | 93 mm | |
| Länge | 76.4 mm | |
| Leiterquerschnitt | 0,25-4,0 mm² | |
| Nennstrom | 6.3 A | |
| Polzahl | 4-polig | |
| Verschmutzungsgrad | 3 |
Download
Logistics
| Ursprungsland | CN |
| Zolltarifnummer | 85369095 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
